H.264/AVC Codec LSI Configuration Technology and Application to IP Retransmission Services

1. From MPEG-2 to H.264/AVC

The MPEG-2 standard used for terrestrial and broadcast satellite digital broadcasts is one of the most widely used video coding standards today, but the movement toward high-definition video in recent years has prompted the standardization of H.264/AVC (H.264) video coding, which can achieve about twice the coding efficiency of MPEG-2. From this background, we have developed an H.264 codec (coder/decoder) large-scale integrated circuit (LSI) called SARA (super advanced realtime codec architecture) [1].

NTT has been involved in the development of video codec LSIs and equipment for over ten years (Fig. 1). Our single-chip high-definition television (HDTV) MPEG-2 codec LSI called VASA developed in 2002 has been deployed successfully in many broadcast studios for transmitting video material in digital terrestrial broadcasting [2]. The SARA chip, which applies technology developed for VASA, is a video codec LSI for professional broadcasting use conforming to H.264/AVC, the latest video coding standard [3].

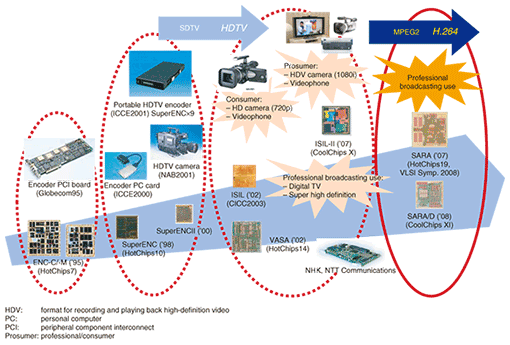

Fig. 1. Past video codec LSIs and equipment and SARA.

2. Requirements for professional broadcasting use

Video transmission by broadcast facilities has three main requirements:

(1) Material transmission between key studios: low delay, high quality (4:2:2 format)

(2) Relay transmission between shooting location and studio: low delay, compact configuration

(3) Delivery from broadcast studio to customers: high compression, high quality (4:2:0 format)

In short, there are various requirements depending on the transmission format, and the codec LSI must have sufficient performance to cover all of them. In particular, it must exhibit high performance for both delay and image quality, for which there is normally a tradeoff. Furthermore, in addition to the usual 4:2:0 chroma format, it must also support the 4:2:2 chroma format that contains twice the chroma information.

3. SARA coding architecture

The coding architecture of SARA is shown in Fig. 2. This is a multiprocessor system-on-a-chip consisting of three RISC (reduced instruction set computer) processors, dedicated hardware engines, and embedded DRAM (dynamic random access memory). The coding core is divided into two sections: the M-CORE that performs motion estimation and compensation and the C-CORE that performs arithmetic coding and rate control. The chosen configuration gives each of these sections a RISC processor to enable detailed control of its dedicated hardware engine.

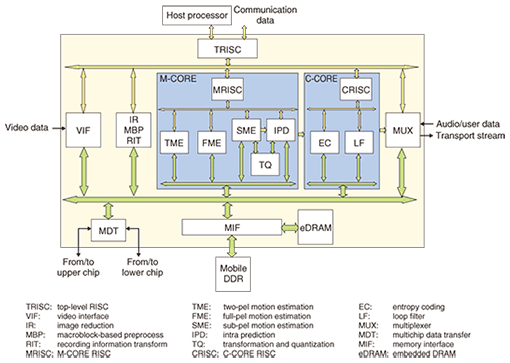

Fig. 2. SARA coding architecture.

The highly functional pre-analysis section (IR, MBP, RIT) analyzes statistical information in the input video and prior coding information (if present). These functions enable high-compression, high-quality video to be achieved.

While standard definition (SD) video coding is achieved with one SARA chip, HD video coding is achieved by parallel coding using multiple chips, that is, by screen-partitioned parallel coding. This approach secures sufficient processing time and high image quality for each of the partitioned areas while minimizing delay.

The problem of the greater memory bandwidth needed to support the 4:2:2 format is solved by using eDRAM and proprietary memory mapping technology.

4. Modules and codec equipment

SARA not only supports HD encoding and decoding, but can be implemented in a compact, postcard-size module. In particular, the encoding module uses mobile DDR SDRAM (double-data-rate synchronous DRAM), which is ideal for small electronic devices, to enable multiple SARA LSIs and external memory to be arranged densely. This module design approach not only allows for compact equipment but also enables encoding/decoding modules to be flexibly combined to produce MPEG-2-to-H.264 coding-conversion equipment (transcoders) and highly functional codec equipment like two-pass encoders (Fig. 3).

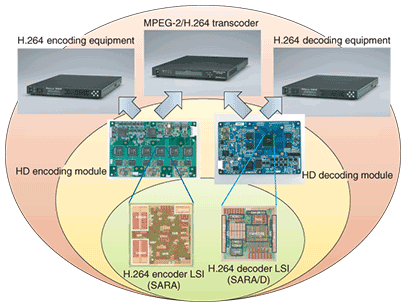

Fig. 3. SARA LSIs, HD encoding/decoding modules, and codec equipment.

5. Application to IP retransmission services

Transcoder equipment using SARA can be used for IP retransmission (retransmission of digital TV programs over an Internet protocol network) services on the Next Generation Network (NGN). In Japan, it is now being applied to retransmission of digital terrestrial broadcasts and will soon be used for retransmission of digital BS broadcasting (BS: broadcasting satellite). In the service launched in May 2008, MPEG-2 HD video of digital terrestrial broadcasts encoded at about 14 Mbit/s is converted to H.264 video at 9 Mbit/s while image quality is maintained. This level of compression enables multichannel viewing.

Before this service could be launched, strict guidelines for delay and image quality had to be satisfied in order to obtain approval for retransmission from the broadcast studios involved. Our transcoder was recognized as the first codec equipment in the world to satisfy these guidelines, and it was chosen for use in the Tokyo and Osaka areas. The plan is to deploy this transcoder in steps as the IP retransmission service expands throughout Japan. The SARA LSI is destined to be a key device in video codec equipment for professional broadcasting use.

References

[1]	K. Nitta, M. Ikeda, H. Iwasaki, T. Onishi, T. Sano, A. Sagata, Y. Nakajima, M. Inamori, T. Yoshitome, H. Matsuda, R. Tanida, A. Shimizu, K. Nakamura, and J. Naganuma, “An H.264/AVC High422 Profile and MPEG-2 422 Profile Encoder LSI for HDTV Broadcasting Infrastructures,” 2008 IEEE Symposium on VLSI Circuits, pp. 106–107, 2008.
[2]	J. Naganuma, “System LSIs for Digital Broadcasting Applications,” NTT Technical Review, Vol. 5, No. 10, 2007. https://www.ntt-review.jp/archive/ntttechnical.php?contents=ntr200710le1.html
[3]	A. Nambu, “Toward Next-generation High-quality, High-reality Video Surpassing HDTV,” NTT Technical Review, Vol. 5, No. 11, 2007. https://www.ntt-review.jp/archive/ntttechnical.php?contents=ntr200711lab.html
