Feature Articles: Latest Trends of Multimedia Broadcasting Technologies for Mobile Terminals

Access Control in Multimedia Broadcasting for Mobile Terminals

Shinji Ishii, Kouichi Ito, Hidetaka Kuwano, Akihito Akutsu, and Toshiharu Morizumi


This article explains access control technology and content protection technology that will serve as content security measures when multimedia broadcasting is provided as a pay service. High-quality audio-visual streaming services based on ISDB-Tmm (integrated services digital broadcasting, terrestrial mobile multimedia) are planned for 2012. They are expected to include realtime services and storage-based services.

NTT Cyber Solutions Laboratories
Yokosuka-shi, 239-0847 Japan

1. Introduction

ISDB-Tmm (integrated services digital broadcasting, terrestrial mobile multimedia), which will be used for multimedia broadcasting services that are scheduled to begin in Japan in 2012, can be considered to be one of the most advanced commercial schemes in terms of security technology supporting the content business and in terms of using the combination of broadcasting and communication. This article mainly explains the functional requirements for the content security technology, including what conventional technology is inherited and the potential for developing the conventional technology. Notices from the Japanese Ministry of Internal Affairs and Communications (MIC) and relevant standard specifications are also mentioned.

2. Content security technology

In the content business, the distribution of valuable content requires guarantees that the content will be used only as permitted. Content security technology serves to satisfy this requirement.

The multimedia broadcasting services are scheduled to include subscription-based services. Since the beginning of subscription-based digital broadcasting services, it has been possible to use the conditional access system (CAS) to restrict content viewing to the receivers used by contract-holders.

Businesses that handle products and digital content and apply security technology for digital transactions used in electronic payments are now common. Digital content differs from food products and other such goods in that its value as a commercial product remains the same even after use. Therefore, digital content must include a function for limiting its use to within the usage rights. Digital rights management (DRM) is one system that includes functions for both electronic payment management and content usage rights management.

For multimedia broadcasting, the realtime broadcasting service and the storage-based broadcasting service described in an MIC report [1] are assumed. Those services take advantage of the features of CAS and DRM. The service and access control technology requirements for the two services are described in Table 1.

Table. 1. Access control technology for multimedia broadcasting.

3. Notices and standards related to ISDB-Tmm

ISDB-Tmm has been systematized and expanded, beginning with BS (broadcast satellite) in 2000 and then CS (communication satellite, ISDB-S) and terrestrial digital broadcasting (ISDB-T). It is important that these broadcast media were effectively configured so that they could be received by the same receivers. Likewise, it is important to utilize new cryptanalysis technology as the processing power of computers increases.

Placing importance on the balance between consideration of implementing the ISDB-T system for cell phones and mobile terminals and effective use of secure-client modules already in wide use for cell phones etc. in multimedia broadcasting as well, the relevant MIC Notices have been compiled as Technical Conditions for Multimedia Broadcasting Systems for Mobile Terminals. That served as the basis for Ministerial Ordinance and Notice revisions. The results relevant to content security are listed and compared with current broadcasting and Internet protocol television (IPTV) in Table 2.

ISDB-Tmm was revised in an April 2010 Notice [2] related to the conventional digital broadcasting (ISDB-T) base. For the encryption algorithm used in the scrambling method for realtime broadcast content, AES (advanced encryption standard) and Camellia, which differ in basic structure from 128-bit block encryption and have been thoroughly analyzed for encryption strength, were added to the MULTI2 64-bit block encryption to mitigate particular encryption risks. Broadcasters can select from among those three algorithms for their implementations. Moreover, “Conditional Access System Specifications for Digital Broadcasting” in Part 4 of ARIB STD-B25 was newly established as a standard specification (ARIB: Association of Radio Industries and Businesses; STD: Standard). Furthermore, “Multimedia Broadcasting Conditional Access System (CAS) Operation and Receiver Specifications” in section 5 of ARIB TR-B33 and “Content Protection for Multimedia Broadcast” in section 8 are set as technical reports (TRs).

Table. 2. Comparison of content security schemes (access control).

4. Access control

Most content must be protected by a certain minimum strength of security throughout the process from the moment the broadcaster obtains the content until the broadcast (including content complementation) and during the viewing or use at the receiver until the content is deleted. Content security technology requires content protection technology.

4.1 Content protection technology

The methods for protecting content from the time of broadcast up to storage in the receiver’s memory device are described in Table 3. Even if the receiver is owned by a legitimate contract holder, any weakness in its security might be exploited in an attempt to use the content in ways outside the content rights. The strength of content protection depends largely on the implementation of the rendering function (video decoding etc.), which is the main target of such threats.

Broadcasters and receiver manufacturers agreed specific compliance rules that are based on the content rights holder’s consent for using and implementing content protection functions in the receiver on the basis of those rules.

One approach that is being considered allows combinations of validity period for viewing, number of replays, and other such use content usage rights restrictions to be set as Rights Management and Protection Information (RMPI) so that the conditions for content use can be selected for each item of content.

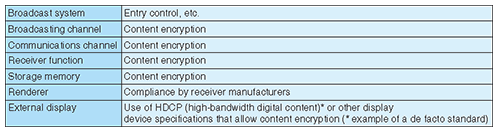

Table 3. Content protection methods.

4.2 Access control requirements

Since the broadcast content is transmitted via a broadcasting channel, the signal might be received by anyone within the broadcasting service area. Conditional access is technology for restricting use of content to only the receivers for which there is a subscription contract for pay services etc.

In the conditional access method (Fig. 1) for the content, the scrambling key for decrypting the content, Ks, is encrypted and broadcast as the ECM (Entitlement Control Message) in sync with the content packets (by multiplexing). The ECM includes the subscription contract information and the corresponding scrambling key (Ks). Because the scrambling key is broadcast in sync with the video and audio, the receiver can use that key to play the video and audio immediately after a channel for which a contract exists has been selected. The subscription contract information for each receiver is sent to the receiver as the EMM (Entitlement Management Message) via the broadcasting channel or communications channel. In this way, the most recent contract information is updated in the EMM and viewing control for a very large number of users can be achieved by reference to the ECM that is broadcast in sync with the content.

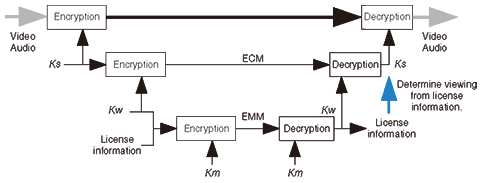

Fig. 1. Overview of CAS.

4.3 Implementation requirements related to development and operating costs

The most important factor that is common to all security measures for application to commercial services for ordinary consumers is the cost-to-performance ratio. With respect to content protection, a much higher level of security is desirable to prevent loss of profit by the content provider. On the other hand, systems that have stronger content security are more expensive. Consequently, use of an excessively strong security function leads to a decrease in the user experience by lowering system performance, effectively increasing the cost of service provision. Furthermore, not all of the requirements are satisfied by security technology: legitimate use by the subscriber according to the terms of the legal contract with the service provider is related to effectively inexpensive provision of service at good quality. The actual implementation of the receiver functions takes this kind of security balance into account.

5. security implementation technology

Because pay services are assumed for multimedia broadcasting services, the services can be implemented with security on the basis of ARIB STD-B25, the standard specifications for the technology currently being used for BS, CS, and terrestrial digital while addressing the following concerns.

•    The receiver implementation shall not specify physical shapes.

•    Because the broadcasting is done in a narrow bandwidth, the EMM, which is specific information for individual subscribers, shall be delivered mainly via a communications channel.

•    Receiver cost should be reduced by sharing the security functions implemented in cell phones etc.

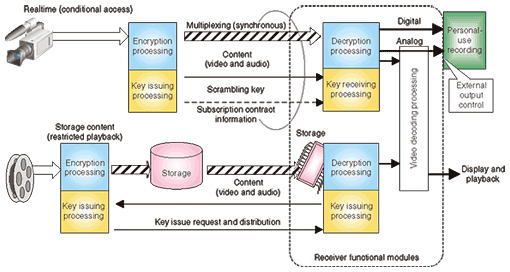

The content security system planned for multimedia broadcasting is illustrated in Fig. 2. The upper part of the figure shows a system for realtime broadcasting service and the lower part shows one for storage-based service.

Fig. 2. Content security system.

Current commercial broadcasting does not include storage-based services, but ARIB TR-B27 [3] summarizes the results of studies on services for the digital broadcasting system based on a home server as a technical report. We consider that storage-based services can be implemented by specializing some of the service functions of the digital broadcasting system based on a home server. For storage-based services, it will be necessary to receive an encryption key. The issuing of the key is referred to as the issuing of a license. The main information contained in that license is 1) link information to the content, 2) a key for decrypting the content, and 3) RMPI that specifies the content usage rights.

6. Conclusion

Multimedia broadcasting is the newest service in digital broadcasting. Its technical architecture can be expected to engender services make the most of the advantages of telecommunication and broadcasting technologies through the fusion of cell phone and receiver functions. In addition to inheriting technology from the ISDB architecture, there is high cross-compatibility with the IPTV technical architecture, so services that implement horizontal integration of media can also be expected.
