Feature Articles: Front-line Research on Graphene

Vol. 11, No. 8, pp. 15–19, Aug. 2013. https://doi.org/10.53829/ntr201308fa3

A Novel and Simple Method of Growing Atomically Thin Hexagonal Boron Nitride

Satoru Suzuki

Abstract

Hexagonal boron nitride (h-BN), a structural analogue of graphene, is an insulating material with a large band gap. The combination of graphene and h-BN is expected to lead to a wide variety of applications. Thus, the demand for large-area and high-quality growth of h-BN is increasing. This article describes a novel and very simple method for growing a large-area and atomically thin h-BN film. In this method, an amorphous solid source is converted to crystalline h-BN through diffusion of boron and nitrogen atoms in metal foil followed by precipitation at the surface.

PDF PDF

1. Overview of hexagonal boron nitride

Planar materials of atomic layer thicknesses, for example, graphene, are attracting much attention for their potential use as building blocks of future nanoelectronics. Hexagonal boron nitride (h-BN) is such a layered material that has a honeycomb atomic network similar to graphene. h-BN is an insulator with a large band gap of about 6 eV [1], which is in strong contrast to graphene, which has no band gap. Various applications can be expected by combining graphene and h-BN, whose structures are similar, but whose physical properties are largely different. For example, the mobility of a graphene device is known to be largely improved when h-BN is used as a substrate compared to a conventional SiO2 substrate [2]–[5]. The reason for this is generally considered to be because h-BN has a much smaller quantity of charged impurities, which scatter carriers in graphene and reduce the mobility. Moreover, the combination of graphene and h-BN would overcome the greatest disadvantage of graphene: the poor switching property (low on/off ratio) in a FET (field-effect transistor), which originates intrinsically in the gapless electronic structure. A band gap opening is expected when graphene is transferred onto h-BN because of the stacking-induced symmetry breaking [6]–[10]. Furthermore, h-BN can also be applied as a gate insulator or a tunnel barrier in electronic devices [11], [12].

The exfoliation method has generally been used to obtain h-BN films [2], [3], [5]. In this method, a single crystal is cleaved by using adhesive tape, and a piece of the crystal is transferred onto a substrate by rubbing the tape on the substrate. (Initially, graphene was obtained exclusively using this method.) However, the typical size of the h-BN film obtained by exfoliation is only 10 mm, and the lack of scalability has prevented more common use of h-BN. Thus, the demand for large-area high-quality h-BN growth is increasing. Recently, many attempts have been made to grow large-area h-BN film by using thermal chemical vapor deposition (CVD) [4], [13]–[19]. However, the CVD method often uses a toxic and explosive gas as a feedstock.

We are researching a CVD method with the objective of obtaining high-quality and controlled growth of the number of h-BN layers [19]. We have also been developing a new method of growing h-BN that would replace the CVD technique [20]. Here, we report a novel and very simple method of growing an atomically thin h-BN film, in which an amorphous material is converted to crystalline h-BN.

2. Growth of h-BN using a solid source

Our method of growing a h-BN film is schematically shown in Fig. 1. A thermally stable SiO2/Si wafer is used as a substrate (Fig. 1(a)). An amorphous boron nitride (a-BN) film 30 nm thick is deposited on the substrate by radio frequency (rf) magnetron sputtering using a sintered BN target. Sequentially, a polycrystalline Ni or Co film 300 nm thick is deposited by rf magnetron sputtering (Fig. 1(b)). The sample was inserted in a quartz tube furnace and heated at 930°C for 10 to 30 min in a high vacuum. An atomically thin h-BN film is formed on the surface of the sample by the heating process (Fig. 1(c)). With this method, we can in principle obtain a h-BN film as large as the substrate that can be set in the furnace and sputtering machine. Another major advantage is that this method is much simpler and safer because no toxic or explosive gases are required.

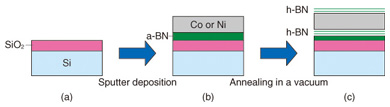

Fig. 1. Schematic of the growth method for h-BN film. (a) Initial substrate. (b) Sequential sputter deposition of a-BN and Co or Ni films on the substrate. (c) Annealing in vacuum results in the formation of h-BN films on both topmost and bottom surfaces of the metal film. Here, we focus on the h-BN film formed on the topmost surface.

The grown h-BN film can be transferred onto any kind of substrate by etching the metal film in an acid. An optical microscope image of a h-BN film transferred to a SiO2/Si substrate is shown in Fig. 2. The h-BN film is scarcely visible because of the high transparency in the visible light. Similarly, graphene can also be transferred to a substrate. Therefore, we can fabricate various graphene/h-BN stacking structures by using the transfer technique.


Fig. 2. Optical microscope image of a h-BN film transferred to a SiO2/Si substrate.

h-BN has a band gap in the ultraviolet (UV) region and reflects a part of photons whose energy is larger than the band gap. UV reflectance spectra obtained from Ni and Co samples after heating are shown in Fig. 3. The peaks observed at about 6.3 eV are characteristic in h-BN, and thus, the appearance of the peaks is indicative of the formation of h-BN (The other part of each spectrum is mainly due to reflection by a Ni or Co film underneath the h-BN film.).


Fig. 3. UV reflectance spectra of h-BN films grown on Ni and Co.

A cross-sectional transmission electron microscope image of a Co sample is shown in Fig. 4. The observed layered structure is also specific to h-BN. The figure indicates that the h-BN film consists of about four atomic layers. This growth method makes it possible to obtain such an atomically thin film.

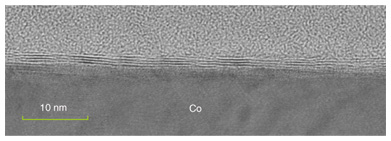

Fig. 4. Cross-sectional TEM image of a h-BN film grown on Co.

3. Growth mechanism

Incidentally, why is a h-BN film formed in this method shown in Fig. 1? The B and N source material, a-BN, is initially embedded in the thick metal film. To begin with, how can B and N atoms reach the metal surface? It is known that a graphite film is formed on the surface by heating when the a-BN film in Fig. 1(b) is replaced with an amorphous carbon (a-C) film. This phenomenon is explained as follows. A considerable amount (~1 at.%) of carbon is soluble in Ni or Co at high temperatures near 1000°C, as schematically shown in Fig. 5(a). Thus, some of the carbon atoms are dissolved in the metal during the heating in the furnace. The carbon atoms dissolved at the interface move to the inside of the metal by diffusion. After a certain period, the dissolved carbon atoms are uniformly distributed in the metal. Here, heating is stopped and the temperature decreases. Accordingly, carbon solubility in the metal also decreases. Then, the excess carbon atoms, which can no longer be dissolved in the metal, precipitate on the surface and form a graphite film. One may expect that this scenario can be applied to the h-BN case. Unfortunately, however, this scenario cannot explain the h-BN formation. This is because BN or N solubility in Ni or Co is virtually zero even at high temperature. (B alone is known to be slightly soluble at high temperature.) Again, how can N atoms move in the metal and reach the surface? The detailed mechanism is not clear at present, but some experimental results have been obtained that provide some insight into the issue. A scanning electron microscope (SEM) image of a Ni sample after heating is shown in Fig. 6(a). Although the entire surface is covered by a h-BN film, it is thin enough for electrons to penetrate, and the observed contrast is due to the morphology of the Ni film. The figure shows that a polycrystalline Ni film is formed after heating, in which the typical grain size is micrometer scale. B(KLL) and N(KLL) Auger electron* mapping images showing the amount of B and N at the surface are shown in Figs. 6(b) and (c), respectively. The two images are largely correlated due to the formation of h-BN. The position-dependent intensity variation shows a thickness variation of the h-BN film. The thick (white) part often forms a closed curve along the fringe of a Ni grain. These results suggest that N atoms reach the surface by the grain boundary diffusion.

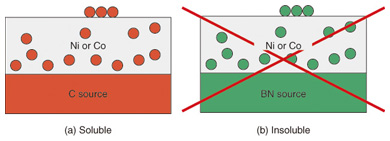

Fig. 5. Carbon is soluble, but BN is insoluble.

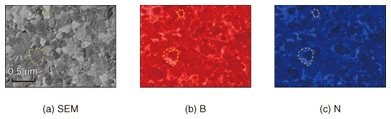

Fig. 6. (a) SEM image of a Ni sample. (b) B (KLL) and (c) N (KLL) Auger mapping images from the same region as (a).

* Auger electron: An electron emitted from an excited atom having a core-hole. It has a kinetic energy specific to the atom. In this study, a K shell electron in a B or N atom is excited by a high energy electron from an electron gun, and one of the L shell electrons is emitted when the atom is relaxed.

4. Future prospects

Currently, we are trying to make this method of h-BN growth further simpler. In this study, the a-BN and metal films were deposited by the sputtering method. Recently, however, we succeeded in growing an atomically thin h-BN film using a spin-coated solid source and commercially obtained metal foil [23]. Thus, an evaporation machine is no longer necessary for growing h-BN. We are also studying the mechanism of h-BN formation. Recent experiments suggest that the diffusion of N atoms is much slower than B and that the h-BN formation is restricted by the provision of N atoms at the surface [23]. We will also try to fabricate stacking structures of h-BN and graphene with the aim of achieving high performance and high functionality graphene devices.

References

[1] K. Watanabe, T. Taniguchi, and H. Kanda, “Direct-bandgap properties and evidence for ultraviolet lasing of hexagonal boron nitride single crystal,” Nature Mater., Vol. 3, No. 6, pp. 404–409, 2004.
[2] C. R. Dean, A. F. Young, I. Meric, C. Lee, L. Wang, S. Sorgenfrei, K. Watanabe, T. Taniguchi, P. Kim, K. L. Shepard, and J. Hone, “Boron nitride substrates for high-quality graphene electronics,” Nature Nanotechnol., Vol. 5, No. 10, pp. 722–726, 2010.
[3] W. Gannett, W. Regan, K. Watanabe, T. Taniguchi, M. F. Crommie, and A. Zettl, “Boron nitride substrates for high mobility chemical vapor deposited graphene,” Appl. Phys. Lett., Vol. 98, No. 24, 242105, 2011.
[4] K. Lee, H. Shin, J. Lee, I. Lee, G. Kim, J. Choi, and S. Kim, “Large-Scale Synthesis of High-Quality Hexagonal Boron Nitride Nanosheets for Large-Area Graphene Electronics,” Nano Lett., Vol. 12, No. 2, pp. 714–718, 2012.
[5] N. Petrone, C. R. Dean, I. Meric, A. M. van der Zande, P. Y. Huang, L. Wang, D. Muller, K. L. Shepard, and J. Hone, “Chemical Vapor Deposition-Derived Graphene with Electrical Performance of Exfoliated Graphene,” Nano Lett., Vol. 12, No. 6, pp. 2751–2756, 2012.
[6] G. Giovannetti, P. A. Khomyakov, G. Brocks, P. K. Kelly, and J. van den Brink, “Substrate-induced band gap in graphene on hexagonal boron nitride: Ab initio density functional calculations,” Phys. Rev. B, Vol. 76, No. 7, 073103, 2007.
[7] J. Slawinska, I. Zasada, P. Kosinski, and Z. Klusek, “Reversible modifications of linear dispersion: Graphene between boron nitride monolayers,” Phys. Rev. B, Vol. 82, No. 8, 085431, 2010.
[8] A. Ramasubramaniam, “Tunable Band Gaps in Bilayer Graphene−BN Heterostructures,” Nano Lett., Vol. 11, No. 3, pp. 1070–1075, 2011.
[9] N. Kharche, and S. K. Nayak, “Quasiparticle Band Gap Engineering of Graphene and Graphone on Hexagonal Boron Nitride Substrate,” Nano Lett., Vol. 11, No. 12, pp. 5274–5278, 2011.
[10] R. Quhe, J. Zheng, G. Luo, Q. Liu, R. Qin, J. Zhou, D. Yu, S. Nagase, W. Mei, Z. Gao, and J. Lu, “Tunable and sizable band gap of single-layer graphene sandwiched between hexagonal boron nitride,” NPG Asia Mater., Vol. 4, e16, 2012.
[11] L. Britnell, R. V. Gorbachev, R. Jalil, B. D. Belle, F. Schedin, A. Mishchenko, T. Georgiou, M. I. Katsnelson, L. Eaves, S. V. Morozov, N. M. R. Peres, J. Leist, A. K. Geim, K. S. Novoselov, and L. A. Ponomarenko, “Field-Effect Tunneling Transistor Based on Vertical Graphene Heterostructures,” Science, Vol. 335, pp. 947–950, 2012.
[12] G. Lee, Y. Yu, C. Lee, C. Dean, K. L. Shepard, P. Kim, and J. Hone, “Electron tunneling through atomically flat and ultrathin hexagonal boron nitride,” Appl. Phys. Lett., Vol. 99, No. 24, 243114, 2011.
[13] L. Song, L. Ci, H. Lu, P. B. Sorokin, C. Jin, J. Ni, A. G. Kvashinin, D. G. Kvashnin, J. Lou, B. I. Yakobson, and P. M. Ajayan, “Large Scale Growth and Characterization of Atomic Hexagonal Boron Nitride Layers,” Nano Lett., Vol. 10, No. 8, pp. 3209–3215, 2010.
[14] Y. Shi, C. Hamsen, X. Jia, K. Kim, A. Reina, M. Hofmann, A. L. Hsu, K. Zhang, H. Li, Z. Juang, M. S. Dresselhaus, L. Li, and K. Kong, “Synthesis of Few-Layer Hexagonal Boron Nitride Thin Film by Chemical Vapor Deposition,” Nano Lett., Vol. 10, No. 10, pp. 4134–4139, 2010.
[15] P. Sutter, J. Lahiri, P. Albrecht, and E. Sutter, “Chemical Vapor Deposition and Etching of High-Quality Monolayer Hexagonal Boron Nitride Films,” ACS Nano, Vol. 5, No. 9, pp. 7303–7309, 2011.
[16] K. Kim, A. Hsu, X. Jia, S. Kim, Y. Shi, M. Hofmann, D. Nezich, J. F. Rodriguez-Nieva, M. Dresselhaus, T. Palacios, and J. Kong, “Synthesis of Monolayer Hexagonal Boron Nitride on Cu Foil Using Chemical Vapor Deposition,” Nano Lett., Vol. 12, No. 1, pp. 161–166, 2012.
[17] A. Ismach, H. Chou, D. A. Ferrer, Y. Wu, S. McDonnell, H. C. Floresca, A. Covacevich, C. Pope, R. Piner, M. J. Kim, R. M. Wallace, L. Colombo, and R. S. Ruoff, “Toward the Controlled Synthesis of Hexagonal Boron Nitride Films,” ACS Nano, Vol. 6, No. 7, pp. 6378–6385, 2012.
[18] S. Suzuki and H. Hibino, “Chemical Vapor Deposition of Hexagonal Boron Nitride,” e-J. Surf. Sci. Nanotechnol., Vol. 10, pp. 133–138, 2012.
[19] C. M. Orofeo, S. Suzuki, H. Kageshima, and H. Hibino, “Growth and low-energy electron microscopy characterization of monolayer hexagonal boron nitride on epitaxial cobalt,” Nano Res. Vol. 6, No. 5, pp. 335–347, 2013.
[20] S. Suzuki, R. M. Pallares, and H. Hibino, “Growth of atomically thin hexagonal boron nitride films by diffusion through a metal film and precipitation,” J. Phys. D, Vol. 45, No. 38, 385304, 2012.
[21] M. Zheng, K. Takei, B. Hsia, H. Fang, X. Zhang, N. Ferralis, H. Ko, Y. Chueh, Y. Zhang, R. Maboudian, and A. Javey, “Metal-catalyzed crystallization of amorphous carbon to graphene,” Appl. Phys. Lett., Vol. 96, No. 6, 063110, 2010.
[22] K. L. Saenger, J. C. Tsang, A. A. Bol, J. O. Chu, A. Grill, and C. Lavoie, “In situ x-ray diffraction study of graphitic carbon formed during heating and cooling of amorphous-C/Ni bilayers,” Appl. Phys. Lett., Vol. 96, No. 15, 153105, 2010.
[23] S. Suzuki, R. Molto Pallares, C. M. Orofeo, and H. Hibino, “Boron nitride growth on metal foil using solid sources,” J. Vac. Sci. Technol. B, Vol. 31, No. 4, 041804, 2013.
Satoru Suzuki
Senior Research Scientist, NTT Basic Research Laboratories.
He received the B.S., M.S., and Ph.D. degrees from Tohoku University, Miyagi, in 1990, 1992, and 1999, respectively. He joined NTT in 1992. Since 1994, he has studied synthesis and physical properties of carbon-based nanomaterials. He has also studied the correlation between the electronic structure and electrochemical properties of transition-metal-based electrode materials of rechargeable lithium ion batteries. Currently, he is studying the synthesis and properties of graphene and hexagonal boron nitride. He is a member of the Japan Society of Applied Physics, the Physical Society of Japan, and the Surface Science Society of Japan.
