DataBridge: Technology to Transfer Data Securely and Efficiently Between Terminals Connected to Different Networks

Hiroyuki Adachi, Nagatoshi Nawa, Fumihiro Yokose,
Kimio Tsuchikawa, and Akira Inoue

Abstract

NTT Access Network Service Systems Laboratories is working on enhancing operational efficiency and reducing operational errors. In this article, we introduce our product called DataBridge, which enables data to be transferred securely and efficiently between terminals connected to different networks.

Keywords: data transfer, security, operational efficiency

PDF PDF

1. Introduction

Companies use various operation systems (OpSs) to improve operational efficiency and ultimately reduce costs. For the most part, OpSs are applied to typical operations in which the volume of business is large rather than to atypical operations in which the business volume is comparatively small. Atypical operations occur less frequently, but their total business volume is not insignificant because there are many types of such operations. To further improve operational efficiency, we need more than ever to address the issue of improving the efficiency of operations that are difficult for OpSs to handle.

NTT Access Network Service Systems Laboratories is proposing client side cooperation as a solution to this issue. This solution enables OpSs to cooperate with each other through terminals rather than through system servers or networks. It has a minimal impact on OpSs and can be applied flexibly according to operations because it is applied on the client side. We have developed DataBridge as one of the elemental technologies of client side cooperation.

2. DataBridge outline

It is often the case that networks used within a corporation cannot be interconnected mainly because of security constraints. Networks for OpSs are designed to transfer only necessary data, and mission-critical tasks will not be affected even if OpSs are not connected to the Internet. However, in some atypical operations such as sending e-mail with attached files that are stored only in OpSs, there is a need to exchange data between different networks.

In such cases, data are currently transferred by manual operations such as using universal serial bus (USB) flash drives, or by printing the information on paper and manually inputting it. DataBridge allows transfer of data between terminals that are not interconnected via a network, based on the concept of client side cooperation. It ensures that data will be transferred securely and efficiently, which is not the case with the conventional approach of using USB flash drives or manually inputting data printed on paper, as shown in Fig. 1.

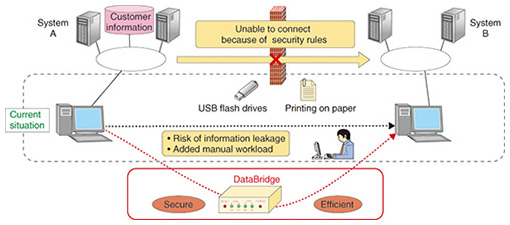

Fig. 1. Schematic of DataBridge.

In general there is a trade-off relationship between security and convenience. However, using the various functions of DataBridge enables users to obtain the most suitable balance with respect to security criteria and business content.

3. DataBridge mechanism

DataBridge is software for general purpose personal computers (PCs). It enables PCs to be used as a data bridge after the software has been installed in them. (Hereinafter, a PC installed with DataBridge software is referred to as “DataBridge”). DataBridge has two USB client ports, one for sending and one for receiving. It also has a function that filters the data input to the sending port so that the user gets only appropriate data from the receiving port (Fig. 2).

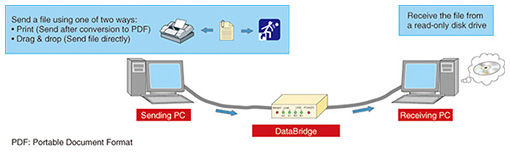

Fig. 2. Utilization of DataBridge.

A user only needs to connect two USB cables in order to utilize DataBridge—one from DataBridge to the sending PC and one from DataBridge to the receiving PC. DataBridge ensures the two networks are never connected to each other because it transfers data without an IP (Internet protocol) connection. The sending PC recognizes DataBridge as a virtual printer, and the receiving PC recognizes it as a read-only removable drive. Users who specify DataBridge as a printer when printing applications (e.g., Excel or OpS) can then get portable document format (PDF) files on the receiving PC.

With this feature, DataBridge provides the following advantages to users.

(i) It transfers only data that are permissible to extract from the system on paper.

(ii) It can remove viruses from files.

(iii) It can transfer data in a single direction.

These advantages enable users to transfer data securely. When users convert files to the PDF format, it becomes difficult to reuse the data. Therefore, DataBridge has a function that allows users to transfer files directly without converting them to PDF, as long as the abovementioned items (i) and (ii) are unnecessary. (The administrator can freely configure enable/disable settings.)

4. DataBridge features

4.1 Security features to ensure safe and appropriate data transfer

DataBridge provides functions for transferring appropriate data; the meaning of appropriate is determined based on the conditions listed in Table 1.

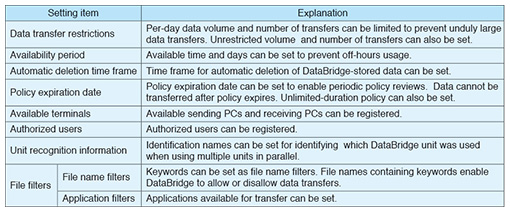

Table 1. Examples of setting items.

DataBridge can filter files by checking file names and types; thus, it functions as a file type filter by checking whether file extensions coincide with the file contents. DataBridge can even extract and check archived files in formats such as zip and lha.

It also has functions to ensure that usage is limited to authorized users and connected PCs. The administrator registers the MAC (media access control) address of PCs so that only registered PCs can use the system. Its user recognition function displays a dialog box in which the user name and password are entered. It can also recognize users by using Windows login information.

By combining these functions, the administrator can set different rules for different people, depending on the positions they hold within their company or organization.

Some examples of usage and restrictions are:

  • Managers can use DataBridge at any time via all connected PCs.
  • Rank-and-file users can use it only from 9 a.m. to 5 p.m. and only via their own PCs.
  • Dispatched employees can transfer only Excel files for which the file name includes the word application.

Because data stored in DataBridge may not be taken from the office, DataBridge encrypts the stored data and automatically erases the data if it detects a disconnection or power-off of the USB cable being used. The erased data can never be restored.

4.2 Automatic usage history record for audits

It is important to ensure that the administrator is able to check whether data have been transferred appropriately. If this check is done using a manual operation, it imposes a heavy burden on both the person recording the usage history and the person checking it. To prevent this, DataBridge automatically records the usage history showing who used the system and when, as well as what files were used and from which PC and to which PC data were transferred. This usage history is basically stored inside DataBridge but can be transferred outside of it, which is useful when multiple DataBridge units are used in parallel.

4.3 Comparison with USB flash drives

USB flash drives are used for transferring data between terminals that are not interconnected over a network, and they present risks of unauthorized use and information leakage. DataBridge prevents these risks by limiting the ways data are transferred and by recording the usage history.

4.4 Cooperation with UMS

The Unified Management Support System (UMS) is a software program that automates a variety of operations being executed on a single terminal. Like DataBridge, it is an example of client side cooperation technology [1, 2]. Combining DataBridge and the UMS makes it possible to automate operations that span across terminals that are not interconnected via a network, as shown in Fig. 3.

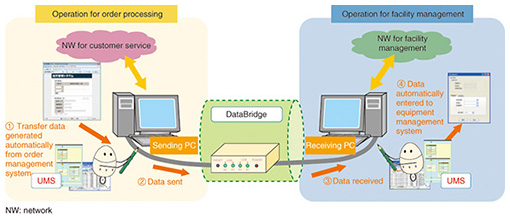

Fig. 3. Automated operation by combining DataBridge and UMS.

5. Summary and future plans

We have developed DataBridge, which enables users to transfer data easily and securely between terminals connected to different networks without any need to modify existing networks or systems. DataBridge is currently being used in the NTT Group. The DataBridge technology was transferred to NTT Software Corporation, where the plan is to further develop and commercialize it.
