Feature Articles: Adapting to the Changing Present and Creating a Sustainable Future

Vol. 20, No. 10, pp. 61–66, Oct. 2022. https://doi.org/10.53829/ntr202210fa9

Smart Traffic Coordination via Learnable Digital Twins—Future Possibilities of Distributed Deep Learning

Kenta Niwa

Abstract

Instead of controlling individual systems (Internet of Things (IoT) devices, smartphones, servers, etc.), which is the current mainstream, NTT Communication Science Laboratories aims to coordinate and control an overall system consisting of a set of IoT devices via digital twins. I report on the latest research projects regarding optimal coordination of overall IoT devices using collective intelligence in digital twins, i.e., (i) traffic coordination of autonomous vehicles and (ii) federated learning on datacenter networks.

Keywords: digital twin computing, traffic coordination, distributed learning

PDF PDF

1. Introduction

It has become commonplace to use advanced machine learning technology via e.g., voice commands on smartphones. The future of the machine learning field will be learning collective intelligence for efficient use of individual systems (Internet of Things (IoT) devices, smartphones, servers, etc.). I believe that a possible innovation in this field will be optimal coordination and control of an overall system consisting of many IoT devices, e.g., autonomous vehicles on traffic networks, servers on datacenter networks, and power plants on energy networks. In this article, I introduce two research projects regarding collective intelligence learning via digital twins.

2. Signal-free mobility project

Future information and communication technology is expected to enable an advanced mobility society in which people, vehicles, and infrastructure cooperate with each other to provide further safety and efficiency. In the Innovative Optical and Wireless Network (IOWN), signal-free mobility is presented as a concept of this advanced mobility society. As shown in Fig. 1, vehicles autonomously travel streets with no traffic signals while communicating with each other to shorten the time to reach destinations without collisions. As the first step in achieving signal-free mobility, NTT Communication Science Laboratories is tackling the problem of traffic coordination in a distributed manner [1].

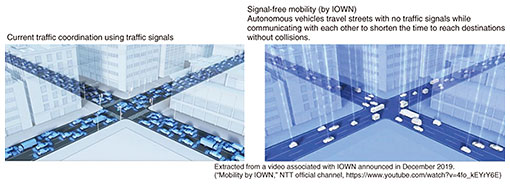

Fig. 1. Concept of signal-free mobility.

Signal-free mobility aims to predict optimal vehicle states to shorten travel time without collisions via feedback between digital twins and real vehicles. To achieve optimal coordination and control of a huge number of vehicles in real time, state transition should be distributed, i.e., by alternatingly repeating computation in each vehicle and communication among vehicles. Therefore, the main research topic is to formulate learnable digital twins to predict the optimal states of a complex overall system in a distributed manner. Digital twins can be modeled using a graph composed of vehicles (nodes shown as yellow vertices) and their connections (edges shown in green connection lines), as shown in Fig. 2. Although overall traffic is a very complex system that changes from time to time, this graphical model can represent traffic as a combination of simple components, i.e., local state prediction of each vehicle and communication among neighboring vehicles.

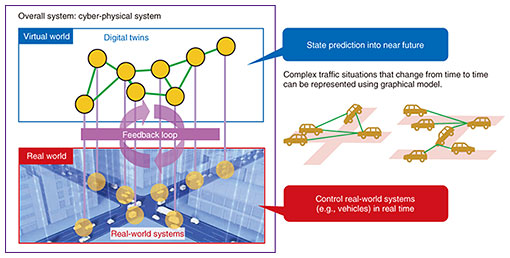

Fig. 2. Graphical modeling of digital twins for traffic coordination, which alternatingly repeats state prediction into the near future and controls real vehicles in real time.

Computation procedures on digital twins for traffic coordination is illustrated in Fig. 3. In forward propagation (Fig. 3(a), left to right), time evolution of both optimal state transition on digital twins and feedback control of real vehicles is illustrated. This is composed of alternating the repeating of multiple steps, i.e., observation-data collection (e.g., image sets of surrounding travel/road situations), calculation of local vehicle state and repulsive force to maintain more than a certain distance between vehicles, and information exchange through communications among neighboring vehicles. To enable real-time traffic coordination, a vehicle’s state calculation can be carried out in a decentralized manner. In backward propagation (Fig. 3(b), right to left), learnable model parameters in the state-transition model are sequentially updated for efficient traffic coordination by increasing the average speed. These two flows (forward and backward propagations) were first expressed using continuous ordinary differential equations (ODEs)*1, the spatially and temporally discretization of which resulted in a special neural network architecture (CoordiNet), as shown in Fig. 3.

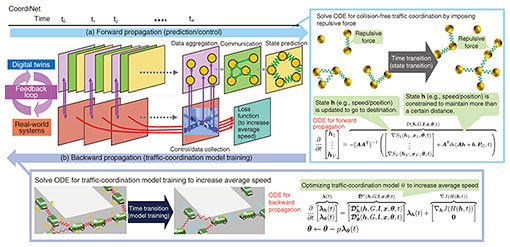

Fig. 3. CoordiNet that represents time-series processing for traffic coordination via digital twins. (a) Forward propagation (from left to right): Optimal states of vehicles can be predicted through feedback between digital twins and real vehicles. (b) Backward propagation (from right to left): Model parameters in state transition model are sequentially optimized for efficient traffic coordination.

With CoordiNet, a signal-free mobility system can be constructed, which is composed of prediction/control and model-training phases, as shown in Fig. 4. In the model-training phase, a number of traffic simulations on digital twins are executed. In these simulations, data collection assuming various traffic situations is conducted by varying the number of vehicles and their initial positions and traveling not only on actual roads but also on those created in virtual worlds. The model parameters for state transition are sequentially updated to increase the vehicle’s average speed. Through training via a number of traffic simulations, the trained model is expected to be robust to unexpected road situations. Since this model-training phase is computationally heavy, model update is assumed to be executed in non-real-time (after several hours to one day). The prediction/control phase deploys a pre-trained model for real-world traffic coordination. In the constructed system, each feedback loop between digital twins and real vehicles is conducted in real time (in about 0.1–0.4 s).

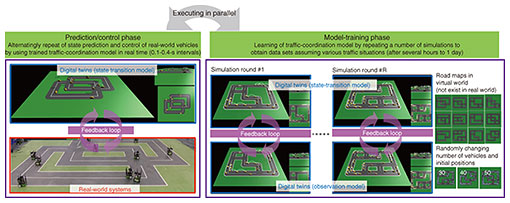

Fig. 4. Signal-free mobility system composed of prediction/control phase (left) and model-training phase (right).

Some of the results from the above traffic simulations for the model-training phase are shown in Fig. 5. It was found that the average speed increased as the traffic simulation was repeated with CoordiNet. When the speed is normalized to set its maximum value to 1.0, the average speed was increased up to 0.90 after training compared with 0.64 before training using randomly initialized hyper-parameters. This result indicates that data collection via traffic simulations is efficient for learning a traffic-coordination model. I also examined the performance of a conventional neural network (graph attention network (GAT)*2) that does not strictly restrict vehicle states to be collision-free and a traffic simulator (Simulation of Urban MObility (SUMO)*3) for comparison. Using the GAT resulted in collisions from the start of the learning rounds, and the average speed could not be stably increased. When using SUMO, however, no collisions occurred, but vehicles would frequently stop in front of intersections, i.e., the average speed could not be increased.

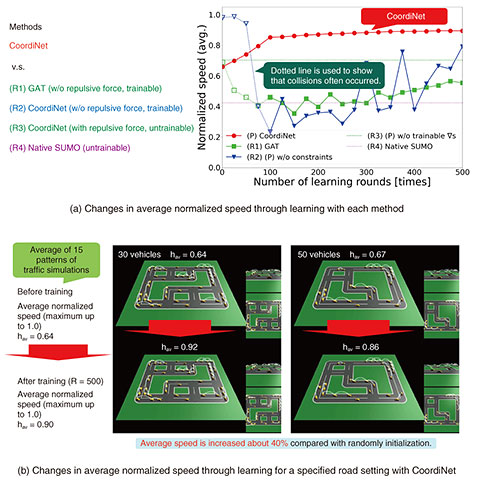

Fig. 5. Experimental evaluation of model-training phase.

To execute the prediction/control phase in real time using a trained traffic-coordination model (Fig. 4), a system to control miniature autonomous vehicles was constructed, as shown in Fig. 6. For each miniature autonomous vehicle, a pair of ultrasonic beacons for measuring position, graphics processing unit (GPU) for local computation, Wi-Fi communication module, and pair of motors to rotate wheels were implemented. In this system, each vehicle communicated with neighboring vehicles via a server and Wi-Fi, and vehicle states were predicted on the digital twins to shorten average travel time without collisions. Around 10–20 vehicles were controllable in real time (about 0.1–0.4-s intervals). Using this system, I experimentally confirmed that the vehicles could travel without collisions as the state predicted by the traffic-coordination digital twins.

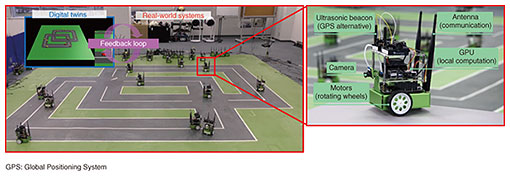

Fig. 6. Experiments on real-time traffic coordination using miniature autonomous vehicles.

*1 ODE: Continuous physical phenomena such as fluids and weather are often represented by ODEs. In this report, complex phenomena in traffic coordination are represented using an ODE such that real-world systems and digital twins can interact with each other.
*2 GAT: A graph neural network that updates state variables while adaptively updating the weights between connected nodes. Note that GAT has not been proposed for application to traffic coordination.
*3 SUMO: An open-source traffic simulator used worldwide by researchers in the intelligent transport systems field. It can be downloaded at https://www.eclipse.org/sumo/.

3. Asynchronous decentralized federated learning project

In the signal-free mobility project, the system is implemented to learn a traffic-coordination model by aggregating data sets obtained via traffic simulators on a single server. However, its collective intelligence learning phase may be shifted to be a distributed manner.

The asynchronous decentralized federated learning project aims to train model parameters (e.g., in neural networks) under a massive network graph obeying a large number of nodes and edges. A pioneering study proposed FedAvg [2], which exchanges model parameters and averages them between connected nodes to make a consensus with each other. In contrast, the Edge-Consensus Learning (ECL) algorithm I proposed and its extensions [3, 4, 5] (i) make an arbitrary graph topology available, (ii) are robust to statistical data bias among nodes by imposing constraints on model consensus, and (iii) enable asynchronous decentralized communications, as shown in Fig. 7.

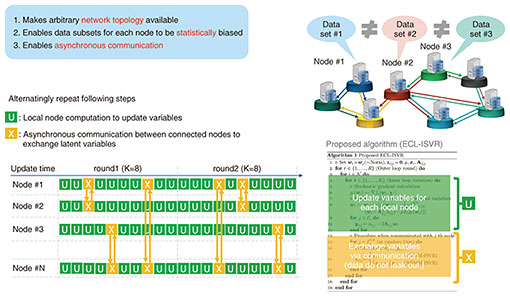

Fig. 7. Problem settings in asynchronous decentralized federated learning.

4. Future plans

I will investigate the mathematical foundation for learning collective intelligence and increase the number of application examples. My aim is to contribute to the early adoption of Digital Twin Computing into society through optimal control of huge systems.

References

[1] K. Niwa, “Distributed Traffic Coordination without Traffic Signals,” NTT Communication Science Laboratories Open House 2022 (Exhibition #1).
https://www.kecl.ntt.co.jp/openhouse/2022/exhibition_01_en.html
[2] B. McMahan, E. Moore, D. Ramage, S. Hampson, and B. A. y Arcas, “Communication-efficient Learning of Deep Networks from Decentralized Data,” Proc. of the 20th International Conference on Artificial Intelligence and Statistics (AISTATS 2017), pp. 1273–1282, 2017.
[3] K. Niwa, N. Harada, G. Zhang, and B. Kleijn, “Edge-consensus Learning: Deep Learning on P2P Networks with Nonhomogeneous Data,” Proc. of the 26th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining (KDD 2020), pp. 668–678, 2020.
[4] K. Niwa, G. Zhang, B. Kleijn, N. Harada, H. Sawada, and A. Fujino, “Asynchronous Decentralized Optimization with Implicit Stochastic Variance Reduction,” Proc. of the 38th International Conference on Machine Learning (ICML 2021), 2021.
[5] G. Zhang, K. Niwa, and B. Kleijn, “Revisiting the Primal-dual Method of Multipliers for Optimisation over Centralised Networks,” IEEE Transactions on Signal and Information Processing over Networks, Vol. 8, pp. 228–243, 2022.
Kenta Niwa
Distinguished Researcher, Learning and Intelligent Systems Research Group, Innovative Communication Laboratories, NTT Communication Science Laboratories.
He received his B.E., M.E., and Ph.D. in information science from Nagoya University in 2006, 2008, and 2014. Since joining NTT in 2008, he had been engaged in research on microphone array signal processing. From 2017 to 2018, he was a visiting researcher at Victoria University of Wellington and involved with research on distributed machine learning and mathematical optimization. He is now with NTT Communication Science Laboratories. He was awarded the Awaya Prize by the Acoustical Society of Japan in 2010. He is a member of IEEE (Institute of Electrical and Electronics Engineers).
