High-definition AI Inference Technology for Detecting a Wide Range of Objects with One Camera at One Time

2.1 Overview of our technology

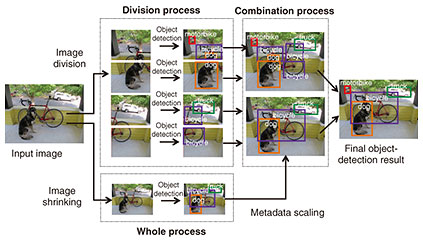

Our high-definition AI inference technology [9, 10] enables both small and large objects to be detected in high-definition images through cooperation among multiple object detectors (Fig. 1). An input image is divided into images of limited size, and objects are detected on the basis of an inference scheme for every divided image. In parallel, object detection is also done in the whole image shrunk to a limited size to detect large objects that straddle the divided images. By combining these object-detection results, a final object-detection result is obtained. In other words, the undetected objects in the shrunk whole image are interpolated from the object-detection results obtained from the divided images. Therefore, both small and large objects can be detected in high-definition images.

Fig. 1. Our high-definition AI inference technology for object detection.

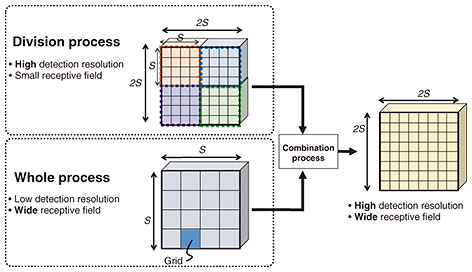

We explain the mechanism by which high-definition object detection can be achieved with our technology by using YOLO as an example scheme. YOLO has a CNN for detecting objects included in an input image. The CNN divides the input image into S × S grids and predicts bounding boxes and class probabilities for each grid. The resolution for detecting objects depends on only the grid size. Our technology reduces the grid size. Figure 2 shows an example in which the input image is divided into four images. In the division process, since each divided image has S × S grids, the four total divided images can be regarded as 2S × 2S grids. This means that the grid size is reduced to half. However, the division process causes the receptive field to narrow because it does not execute the convolutional operations for the whole image, thus cannot detect large objects. In contrast, in the whole process, although the detection resolution is low, a wide receptive field can be obtained. Therefore, with our technology, the division process with high detection resolution and small receptive field and the whole process with low detection resolution and wide receptive field are combined, which enables object detection with high detection resolution and wide receptive field. Concretely, when an image with 1920 × 1080 pixels is input, the minimum gird size without our technology (YOLOv3 only) is 60 × 34 pixels because S is 32. In contrast, with our technology, the minimum grid size becomes 30 × 17 pixels when there are four divisions, and higher detection resolution can be provided.

Fig. 2. High-definition object-detection mechanism.

Our technology is suitable for hardware implementation because all object-detection processes can be executed in parallel. The same weight coefficients can also be used among all object-detection processes. In addition, any AI inference scheme for object detection can be applied, and re-training for applying our technology is not necessary. Moreover, the computational complexity with our technology is proportional to the number of divisions. This means that our technology can reduce the grid size with less complexity than increasing the number of grids in the CNN because the complexity of the CNN increases with the square of the number of grids.

2.2 Details of combination process

In the combination process, the undetected objects in the shrunk whole image are selected from the object-detection results obtained with the divided images. The detected objects in the shrunk whole image and the selected objects are output as the final object-detection results.

This selection requires determining whether an object detected in the divided image is an undetected one in the shrunk whole image. The combination process calculates two indicators: a multiplicity between the detected object in the divided image and that in the shrunk whole image and the ratio between the area size of the detected object in the divided image and that in the shrunk whole image.

When both indicators are high, the process determines that the detected object in the divided image is the same as that in the shrunk whole image and excludes it from the objects to be selected. In contrast, when either of these indicators is low, the process determines that the detected object in the divided image is different from that in the shrunk whole image. This is executed for all detected objects in the divided images in combination with all detected objects in the shrunk whole image, and the non-excluded detected objects in the divided images are selected as the undetected objects in the shrunk whole image. Moreover, the object with the class detected only in the divided images is selected when its object size is sufficiently small that it cannot be detected in the whole shrunk image, e.g., its object size is less than 1/100 of the input image size.

The above-mentioned multiplicity I_multiplicity is a dedicated indicator for enabling comparison between the divided and whole objects and is expressed as

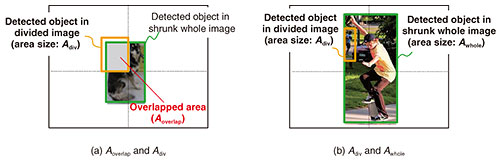

where A_overlap is the overlapped area size between the divided object detected in the divided image and the whole object detected in the shrunk whole image, and A_div is the area size of the divided object, as shown in Fig. 3(a). Although intersection over union (IoU) is often used as multiplicity, it is unsuitable to use to compare a divided object and a whole object because it assumes comparison between whole objects. Therefore, we newly define I_multiplicity. When I_multiplicity is larger than or equal to a threshold α, the multiplicity is determined to be high. Under the high multiplicity condition, the divided object is likely to be the same as the whole object.

Even if the multiplicity is high, the detected object in the divided image may be different from that in the shrunk whole image when the area-size ratio between those objects is high, as shown in Fig. 3(b). The above-mentioned size ratio I_ratio is used for determining this condition. The I_ratio is given by

where A_whole is the area size of the detected object in the shrunk whole image. Under the high multiplicity condition, when I_ratio is larger than or equal to a threshold β, the detected object in the divided image is determined to be same as that in the shrunk whole image.

Fig. 3. Examples of A_div, A_whole, and A_overlap.

With these indicators in the same class, the undetected objects in the shrunk whole image are selected from the detected objects in the divided images, and both large and small objects can be detected while avoiding duplicate detection of the same object.

3.1 Optimization of pre-set parameters

With our technology, α and β are pre-set for the combination process. An object detected in the divided image is more likely to be determined as undetected in the shrunk whole image when these thresholds are higher and more likely to be determined as the same when these thresholds are lower. Thus, α and β should be optimized to execute the combination process properly.

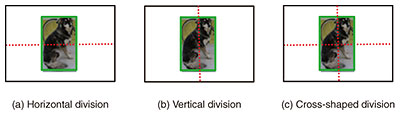

Object-division patterns can be mainly classified into horizontal division (Fig. 4(a)), vertical division (Fig. 4(b)), or cross-shaped division (Fig. 4(c)). When there are two divisions, only the vertical or horizontal division pattern can occur. In contrast, when there are more than two divisions, all division patterns can occur, and the division pattern for the object varies in accordance with the position of that object in the image. For this reason, commonly available α and β need to be obtained for various division patterns.

Fig. 4. Division patterns.

We searched for the optimized α and β where the average precision (AP) is maximized. The AP is obtained from precision and recall. In this search, α and β were varied from 0.1 to 0.9 in increments of 0.2. We used the images in the MS COCO dataset val2017 because the objects included in these images are large and the division patterns shown in Fig. 4 can be reliably generated.

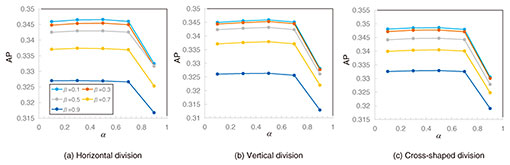

Figure 5 shows the measured relationship between AP, α, and β. The AP decreased as β increased from 0.1 in all division patterns. The AP also reached its maximum when α was 0.5 in all division patterns. The AP gradually decreased as α increased from 0.5. This is because an object detected in the divided image is more likely to be determined as undetected in the shrunk whole image as α becomes higher. In other words, the optimized α and β are 0.5 and 0.1, respectively, for all division patterns. Therefore, the combination process with our technology can be properly executed by pre-setting α to 0.5 and β to 0.1.

Fig. 5. Relationship between AP, α, and β.

3.2 Object-detection performance

We conducted evaluations to determine the effectiveness of our technology. On the basis of the optimized result described in the previous section, α and β were set to 0.5 and 0.1, respectively. There are two divisions.

We first conducted a basic evaluation using 5000 images in the MS COCO dataset val2017 and measured the AP for each class. Although the images included in the MS COCO dataset are standard definition (SD) images, such as 600 × 400 pixels, large objects account for a higher percentage of the objects in the images; thus, we can determine the image-division penalty with our technology by comparing the APs with and without our technology. The measured AP is that averaged by 10 IoU thresholds in 0.05 increments from 0.5 to 0.95.

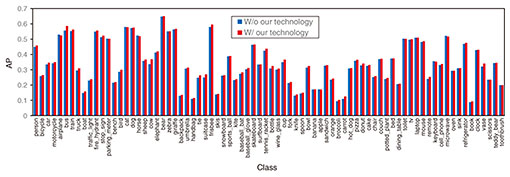

Figure 6 shows the measurement results. The AP improved in almost all classes and by a maximum of 1.2 times. This means that our technology can suppress the image-division penalty for large objects and improve object-detection performance even in SD images.

Fig. 6. AP of each class (image size: about 600 × 400 pixels).

We then evaluated object-detection performance with full HD images. We selected 150 full HD (1920 × 1080) images from the VisDrone2019 dataset [13] and evaluated precision and the number of detected objects. The VisDrone dataset is a large-scale drone-captured dataset with ten classes and includes full HD images. For the weight coefficients, we used the same coefficients pre-trained using the MS COCO dataset as above. To calculate precision, we remapped people and pedestrian labels to person label and van label to car label in the VisDrone dataset, and only the common class labels between MS COCO and VisDrone were evaluated.

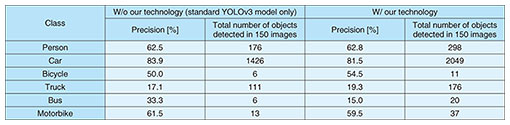

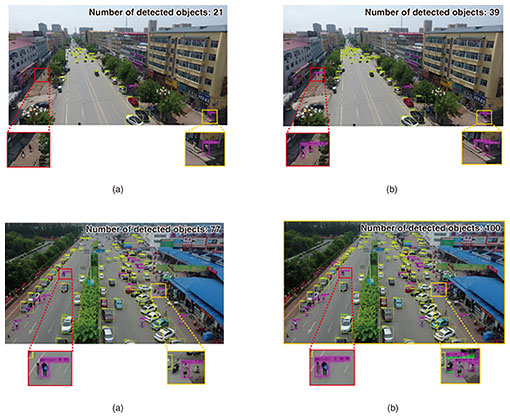

Table 1 summarizes the detection results, and Figure 7 shows the example images obtained in this evaluation. From Table 1, our technology enabled the number of detected objects to be increased while maintaining precision. For example, the number of detected objects in the person class was 1.7 times higher with our technology than without it. Across all evaluation classes, it was 2.1 times higher on average. As shown in Fig. 7, small objects such as passersby and distant cars could be detected with our technology but could not be detected without it.

Table 1. Summary of the detection results (image size: 1920 × 1080 pixels).

Fig. 7. Examples of detection results: (a) without our technology (standard YOLOv3 model only) and (b) with our technology.

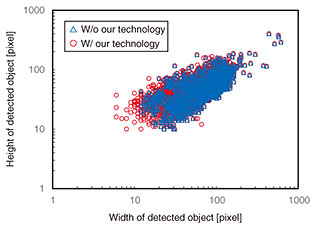

Figure 8 shows the size distribution of detected objects. Our technology could detect much smaller objects. Specifically, the minimum width size was halved from 12 pixels without our technology to 6 pixels with it. This is because 2S (width) × S (height) grids are achieved with our technology when there are two divided images in the division process, as described in Section 2.

Fig. 8. Size distribution of detected objects in high-definition images.

These results indicate that our technology can improve object-detection performance in not only SD images but also HD images by suppressing the image-division penalty.
