Self-folded Three-dimensional Graphene for Biointerfaces

2.1 Preparation of materials

Owing to tight π-π adhesion with graphene, we used poly(chloro-p-xylylene) (parylene-C) as a mechanically stable, biocompatible, and aromatic ring-rich polymer [6–8]. We adhered the multi-layered films composed of parylene, polycrystalline / single-crystal monolayer graphene, to the underlying sacrificial layer. While polycrystalline monolayer graphene chemical vapor deposition (CVD)-grown on copper (Cu) foils was purchased from Graphene Platform Corp., large-scale single-crystal graphene was synthesized on the Cu foils with an atmospheric pressure CVD process by using a mixture gas of methane (CH₄) and hydrogen (H₂) [9]. The sacrificial layer consists of calcium (Ca) alginate hydrogel that is dissolved instantly by adding chelating agents such as ethylenediaminetetraacetic acid (EDTA) or sodium citrate solution. To examine the biocompatibility of self-folded structures, we used primary hippocampal neurons that were dissociated from the hippocampi of Wistar rat embryos.

2.2 Device fabrication and cell encapsulation

Figure 1(a) shows the process used to fabricate micro-patterned graphene/parylene bilayers. After Ca alginate was spin-coated on silicon dioxide (SiO₂) substrates, both single-crystalline and polycrystalline monolayer graphene were transferred using the conventional poly(methyl methacrylate)-assisted method. Subsequently, parylene-C was deposited using a CVD process and covered with photolithographically micro-patterned photoresist. The triple-layered film was finally etched with oxygen plasma to create a micro-patterned film array. After suspending the neurons, an array of micro-patterned films was released from the substrate by dissolving Ca-alginate sacrificial layers via immersion in EDTA solution.

3.1 Self-folding of 3D graphene-polymer architectures

The dissolution of the sacrificial Ca-alginate layer with EDTA resulted in simultaneous batch self-folding of the graphene-laden parylene bilayers into cylindrical micro-rolls (Fig. 1(b)). Interestingly, the bilayer was bent in the direction of the substrates while maintaining the bottom parylene on the inward side. At this time, the loaded graphene appeared to be exposed to tensile force; thus, causing it to cover the inner parylene from the outside. We confirmed that the curvature of the micro-rolls is controllable with the thicknesses of parylene (t_p) and the number of graphene layers (t_g). Given the transferred monolayer graphene, a thinner t_p leads to a smaller micro-roll; stacking multi-layered graphene makes the micro-rolls much tighter when t_p is constant. Both reducing the thickness of the parylene layer and sequentially stacking multi-layered graphene decreases the bending rigidity, thereby improving machining controllability of a fine 3D structure. These results indicate that the underlying mechanism of self-folding is the stiffness mismatch in the bilayer, following the trend predicted by the bimorph beam theory [10].

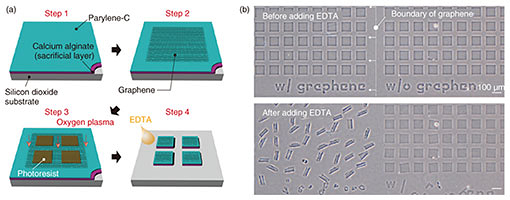

Fig. 1. (a) Fabrication process of self-foldable thin film. Three layers of graphene, parylene, and Ca-alginate gel are laminated then processed using lithography to form an arbitrary 2D micro-pattern. (b) Self-folding process of graphene/parylene bilayers. The Ca-alginate gel layer is removed with EDTA to release the thin film from the substrate.

While the self-folding orientation of polycrystalline graphene-laden bilayers was random, one of the single-crystalline graphene-laden bilayers was relatively uniform. Figure 2(a) shows that two adjacent hexagonally shaped-single graphene domains caused the subsequent unidirectional self-folding to form a tubular shape with a uniform curvature. This difference is attributed to a patchwork of relatively smaller single-crystalline grains separated by grain boundaries within the polycrystalline graphene. Since one might expect a single domain of graphene to have the same elastic energy, which induces an isotropic tensile force for folding, the uncontrollable folding orientation originates from domains inside the CVD-grown graphene [11]. In contrast, when the domain size is larger than one sheet of micro-patterned film, the crystalline orientation of graphene would certainly affect the orientation of self-folding.

3.2 Electrical properties

The strain in outer graphene during self-folding was estimated by characterizing shifts in G peaks (ΔG) and 2D peaks (Δ2D) from the original modes with Raman spectroscopy (Fig. 2(b)). The blue-shifts in both ΔG (~8 cm⁻¹) and ΔG (~16 cm⁻¹) stem from the distorted graphene lattice and altered interatomic distance, which determines the strain of 0.18%. This estimated strain within the graphene is almost in agreement with the predicted value in the 0.16–0.18% range that is theoretically rationalized with the bimorph-beam theory [10]. Therefore, graphene loaded on parylene will not only longitudinally elongate but also contract transversely with uniaxial tension.

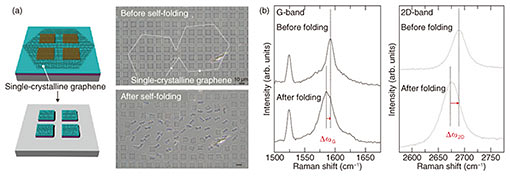

Fig. 2. (a) Schematic of transferring and micropatterning for generating single-crystalline graphene-laden micro-rolls (left), and snapshots highlighting the bilayer films of single-crystalline graphene and parylene in the flat and folded states (right). White dotted lines indicate the grain boundaries of hexagonally shaped graphene. (b) Raman spectra of monolayer graphene-laden micro-rolls before and after self-folding. Enlarged G and 2D peak regions for graphene.

The structural alteration of hexagonal-shaped graphe­ne is critical in terms of changing the electronic structure. Therefore, we newly micro-patterned bilayers that were hinged and partially pinned down and measured their drain current (I_d)–voltage (V_d) characteristics before and after self-folding at room temperature. While flat graphene exhibits linear behavior, the self-folding process greatly alters the electrical property of loaded graphene to non-linear (Fig. 3(a)). The resistance increased from 17.9 to 38.0 kΩ when measured at 0 mV. When applying back-gate voltages (V_g), both positive and negative back-gate voltages modulated the non-linear resistance of micro-rolls (Fig. 3(b)). This result indicates that the self-folding process never leads to the exfoliation or rupture of graphene and behaviors as a p-type semiconductor in both flat and folded states. We attribute the altered charge carrier densities even at room temperature to the uniformly compressed graphene-unit hexagonal cell. This modulatable property makes it possible to develop switching transistors.

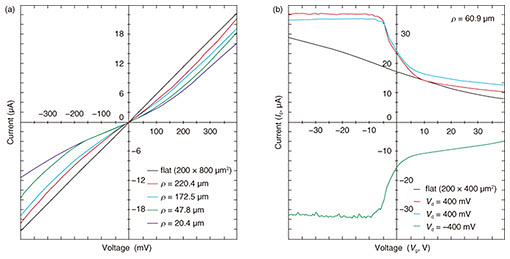

Fig. 3. Electrical properties of graphene-laden micro-rolls. (a) Non-linear I_d–V_d curves of self-folded 200×800 I_d–V_d m² films with different curvature radii, ρ. (b) Corresponding non-linear I_d–V_d curves of self-folded 200×400 I_d–V_d m² films where ρ = 60.9 µm by varying V_g.

3.3 Encapsulation of cells in porous micro-rolls

To apply graphene micro-rolls to biointerfaces, we investigated their biocompatibility by encapsulating the primary hippocampal neurons inside them [5]. After exposure to EDTA, the cells on the 2D film surface were encapsulated inside the micro-rolls through the self-folding of the bilayer (Fig. 4(a)). Both self-folding and encapsulation were sufficiently gentle to avoid cell damage, which allows the encapsulated cells to migrate inside the micro-rolls during incubation. Since the curvature radius and length of the micro-rolls are controllable, the number of encapsulated cells can be easily controlled with the cell density and volume of the micro-rolls. The high biocompatibility and transparency of the micro-rolls enable stable culturing of encapsulated cells.

To enable long-term cell culture, we incorporated the tiny pores with several different diameters to facilitate reagent delivery to the encapsulated cells. Importantly, these numerous pores inside the bilayer have no effect on the curvature radius of the micro-rolls. The pores have two additional characteristics to enable long-term cell culture. First, they allow the neurites to grow across them and extend outside the micro-roll. Time-lapse images of neuron-laden micro-rolls over 5 days show that the neurites from a porous micro-roll protruded beyond the micro-roll 2 h after folding and became longer with an average growth rate of approximately 3 µm/h (Fig. 4(b)). Second, they enable us to load biological probes and pharmacologically stimulate the encapsulated cells. Although a major advantage of cell encapsulation is homogenous cell distribution, long-term culture causes changes in the distribution depending on the cell type and its adhesive and migration properties. The results indicate that porous micro-rolls help encapsulated cells maintain their positions with homogeneous distribution.

To further investigate the morphology, the neuron-laden micro-rolls were characterized with immunocytochemistry by using two neuronal markers: MAP2 (dendrite/cell body marker; red) and tau1 (axon/cell body marker; green). Figure 4(c) shows that MAP2-positive neuronal cell bodies were sustainably located in porous micro-rolls and greatly extended their axons (tau1-positive) around the micro-rolls (Φ = 3 µm). We verified that porous self-folding film enables us to isolate axons from neuronal cell bodies cultured in a 3D tubular structure. It is well recognized that a 3D tubular structure is useful for guiding neurite outgrowth. When neurons are encapsulated, the confined structure not only arranges neurons but also guides axons in the single direction as the long axis. Also, incorporated pores on the surface allow both control over the cell distribution and axon guidance in multiple directions. Thanks to the axon guidance in multiple directions, a porous neuron-laden micro-roll can potentially be used as a building block for constructing a complex neuronal network and creating a brain-like network.

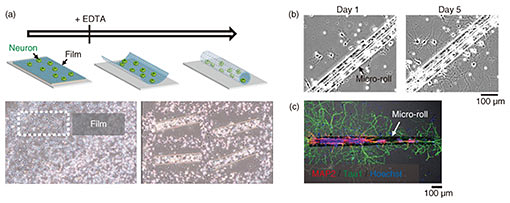

Fig. 4. (a) Schematic and snapshot images of cell encapsulation. Dissociated cells are seeded on the self-folding film. The folded film encapsulates seeded cells and forms a cell-laden micro-roll. (b) Time-lapse images of neurons encapsulated within micro-rolls with φ = 5 µm pores for 5 days. Neurons extend their axons (black and white arrowheads) around the micro-roll. (c) Immunocytochemical images of neuron-laden micro-rolls with φ = 3 µm pores. The cultures are stained with antibodies for the dendrite/neuronal cell body marker MAP2 (red) and the axon/neuronal cell body marker tau1 (green) for 6 days in vitro. Nuclei are visualized using Hoechst staining (blue).

3.4 Reconstruction of functional tissue-like structures

The key challenge with cell-laden micro-rolls is to fabricate tissue-mimicking tubular structures and confirm their cellular function [12]. To demonstrate that pores provide functional integration of neuron-laden micro-rolls into a surrounding neuronal network, a culture was labelled with anti-beta3-tubulin (neuronal marker; green) and anti-synapsin I (synapse marker; red) to assess the morphology and synapse formations around the pores. Confocal microscopic images indicate that beta3-tubulin-positive cells inside and outside the micro-roll were connected by neurites that pass through a pore (Fig. 5(a)). Furthermore, synapsin I was expressed in the neurons, forming synapse puncta along their neurites. Importantly, synapsin I puncta were detected along the neurites passing through the pores (white arrowhead), suggesting the formation of synaptic connections between encapsulated and surrounding neurons.

To determine whether a functional synaptic connection is formed, we investigated the synchronization of spontaneous activities within the neuronal network by monitoring intracellular calcium ions (Ca²⁺). Figure 5(b) shows that spontaneous Ca²⁺ increases in the neurons attached within and around the micro-rolls. The spontaneous Ca²⁺ oscillations are highly synchronized between encapsulated and surrounding neurons. Given that synchronized spontaneous activity is typically mediated by glutamate synaptic transmissions in the hippocampal neuronal network, the synchronized Ca²⁺ oscillations indicate the formation of functional synaptic connections. Hence, the encapsulated neurons were functionally integrated into surrounding neuronal networks by extending their axons through the pores.

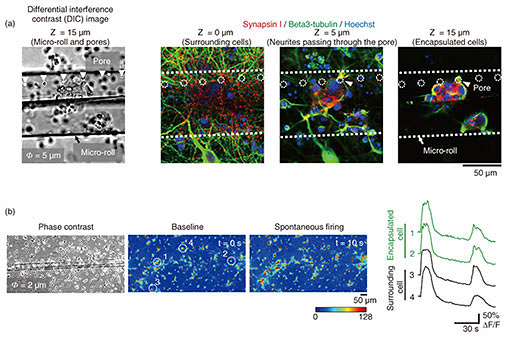

Fig. 5. (a) Images acquired at different z-positions around the micro-roll with a differential interference contrast microscope. The micro-rolls on the neuronal network are immunostained with the synapse marker anti-synapsin I (red), neuronal marker anti-beta3-tubulin (green), and Hoechst (blue) over 6 days in vitro. White dotted circles indicate pores on the micro-roll surface. The white arrowheads show axons passing through a pore. (b) Heat maps of spontaneous activities in neurons (left) and intensity traces of the calcium indicator in regions of interest (ROIs) (right). The traces are normalized to the initial fluorescence intensity (ΔF/F). The scale bars indicate 100 µm.

It is generally believed that the functional integration of transplanted neurons into existing circuitry is required for neural transplantation leading to brain repair. Although cell encapsulation is a useful method for 3D tissue formation and cell delivery, the confined structure limits the formation of neuronal connections with surrounding tissues. Cell encapsulation using a porous film allows encapsulated neurons to extend their axons across the pores and form functional synaptic connections with surrounding neurons. These results highlight the potential for using a neuron-laden micro-roll with pores as a platform for constructing functional neural tissue with highly precise 3D geometry. Furthermore, the graphene surrounding a micro-roll will be used as an electrode for electrophysiological recording and the stimulation of neuronal activity.
