Vertically Distributed Computing Technology

2.1 Vertically distributed application architecture

(1) Obstacle detection and notification in the previous ICT platform

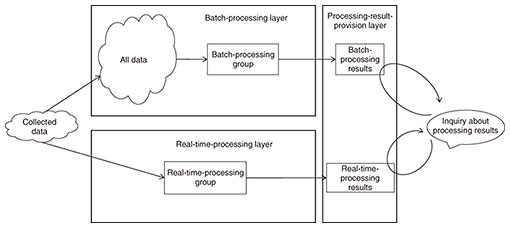

The previous ICT platform used in our collaboration with Toyota was built on the lambda architecture [1, 2], in which stream (real-time) data processing and batch data processing are executed in parallel, allowing both quick results from stream processing and detailed results from batch processing to be made available (Fig. 1). To be able to execute obstacle detection and notification within 7 s, the platform estimated the type and location of any obstacle from each frame (image) by stream processing. However, the lambda architecture does not take into account the requirements for processing time. Therefore, a system built on this architecture does not necessarily satisfy the requirement to execute obstacle detection and notification within 7 s. The actual processing time has been about 15 s.

Fig. 1. Lambda architecture.

(2) Vertically distributed application architecture

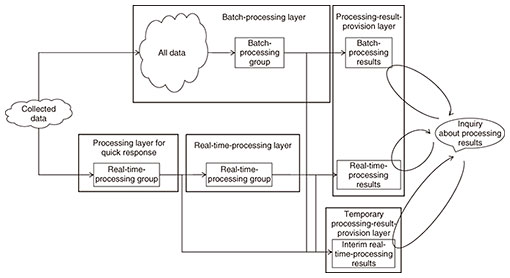

To solve this problem, we proposed an architecture that allows a processing-time threshold to be set in the lambda architecture. This new architecture is called a vertically distributed application architecture (Fig. 2). In this architecture, groups of processes are extracted from a series of processes in the order of their processing in such a way that the total processing time does not exceed the threshold. The results of these extracted processes can be obtained by the client. We revised the ICT platform to run on this architecture. In the revised ICT platform, object recognition is extracted from image-data processing, which consists of object recognition and object-location estimation. By doing so, connected vehicles can obtain information about the type of obstacle before the ICT platform completes the estimation of the obstacle location. To further increase the processing speed, the revised ICT platform offloads^*1 object recognition to network-edge nodes^*2, which are located closer to the relevant connected vehicles than the datacenter servers are. These nodes send obstacle information directly to the connected vehicles. In this architecture, obstacle detection and notification are executed in the following two stages (Fig. 3):

Fig. 2. Vertically distributed application architecture.

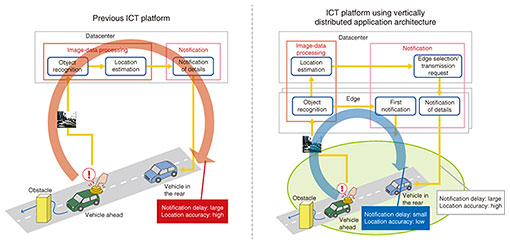

Fig. 3. A before-and-after comparison for the introduction of vertically distributed application architecture.

(3) Field trial

In a field trial, the vehicle that took the image of the obstacle and the vehicle that received the obstacle information were the same. We measured the time between when the onboard camera captured the obstacle and when the vehicle received the obstacle information from the ICT platform. The results are shown in Table 1. The first notification was sent within 7 s. As mentioned above, the first notification only contained information about the approximate location of the obstacle because the precise location had not yet been calculated at this point. Since this approximate location was the location of the vehicle that took the image of the obstacle, it was several to ten meters away from the real obstacle location. However, since vehicles can move more than 10 m/s, we believe that providing information about the approximate obstacle location more than 10 s earlier than had been possible, even at the cost of location accuracy, would be extremely valuable for assisting safe driving.

Table 1. Results of the field trial of vertically distributed application architecture.

2.2 Dynamic selection of processing nodes

(1) Issues confronting the ICT platform after the adoption of the vertically distributed application architecture

The field trial showed that the vertically distributed application architecture made quick notification possible. However, the trial was conducted under conditions such that the computing resources of the network-edge nodes were not exhausted. When connected vehicles are widespread, a large number of them may be connected to a small number of network-edge nodes. The concentration of the processing load for object recognition on these edge nodes may overwhelm their computing resources, making it impossible to send notifications quickly.

One way to distribute a load that would otherwise concentrate on a small number of computers is to offload the processing load to the most appropriate computers on the basis of the acceptable processing delay and remaining computer resources. Many such technologies have been proposed (e.g., [3]). However, adopting only these conventional technologies cannot solve the above problem because vehicles can move more than 10 m/s, causing the surrounding conditions to change quickly from moment to moment, and the acceptable processing delay varies depending on these surrounding conditions. For example, if an obstacle is located on a blind curve, the risk of an accident is very high, and it is urgent to alert the vehicles near the obstacle. In contrast, if an obstacle is on a road with good visibility, the risk of an accident is low, and it is less urgent to send obstacle notifications to the vehicles near the obstacle. Conventional technologies do not take into account these client situations (i.e., the road situations mentioned above). Therefore, if the ICT platform’s load balancing is based on conventional technologies, obstacle notification may not be sent quickly even in situations where quick notification is absolutely needed, or it may be sent quickly even when there is no urgent need for it to be.

(2) Overview of technology for dynamically selecting processing nodes

To address the issue mentioned above, we developed a technology for dynamically selecting processing nodes. It adds to the conventional load balancing technology the ability to take into account the surrounding conditions of the vehicles to be notified. This technology consists of the following three processes:

Various algorithms for Process (i) can be conceived for each use case. In the field trial, we adopted an algorithm designed for the obstacle detection and notification use case and verified its effectiveness.

(3) Application of the technology for dynamically selecting processing nodes to the ICT platform

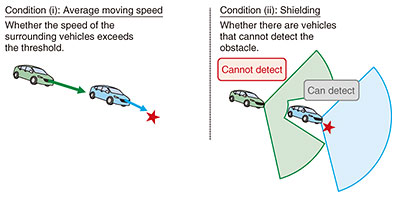

In the field trial, we adopted an algorithm that takes into account the requirement that connected vehicles moving at high speed without being able to detect the obstacle should be urgently notified. Specifically, the platform searches for connected vehicles in the vicinity of the vehicle that transmitted the relevant onboard camera image. These are the targets for obstacle notification. The platform then determines whether it is urgent to notify these connected vehicles on the basis of the following two conditions (Fig. 4):

Fig. 4. Determining whether there are connected vehicles requiring quick notification.

To implement Condition (ii), the platform uses an algorithm similar to the selective vehicle-data-collection algorithm to determine whether the view of the obstacle is blocked. If quick notification is required, the processing priority is set to high. If quick notification is not required, the processing priority is set to low. For in-between cases, the processing priority is set to medium. This priority setting is summarized in Table 2.

Table 2. Setting of processing priority for images from onboard cameras.

The next step is to determine, based on the priority setting just described, which computer should execute the object recognition. As with the conventional technology, our technology for dynamically selecting processing nodes monitors the remaining resources of each computer in the system and selects the appropriate computer on the basis of the remaining resources of each computer and the processing priority, as shown in Table 3. Finally, the platform offloads the object-recognition process to the selected computer and the latter executes the process.

Table 3. Selection of the processing computer based on priority.

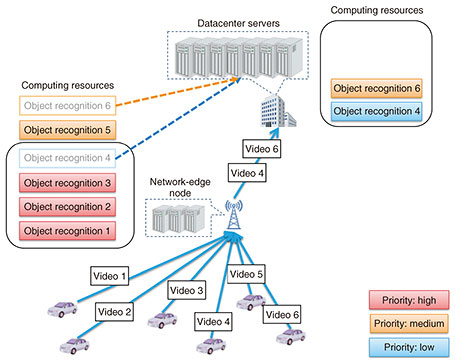

Figure 5 illustrates an example computer configuration in the ICT platform and how the computers to which the target process is offloaded are selected. We assume that the network-edge node receives the onboard camera videos in the sequence of videos 1 to 6 in the figure and that the object-recognition priority for each video is set as shown in the figure. Object recognition 4, which processes video 4, has low priority thus offloaded to a datacenter server. Object recognition 5 has medium priority. It is executed by the network-edge node because the above offloading has freed up its resources. This exhausts the computing resources at the network-edge node. Therefore, object recognition 6, which has medium priority, is offloaded to a datacenter server.

Fig. 5. Example of the dynamic selection of processing nodes.

(4) Field trial

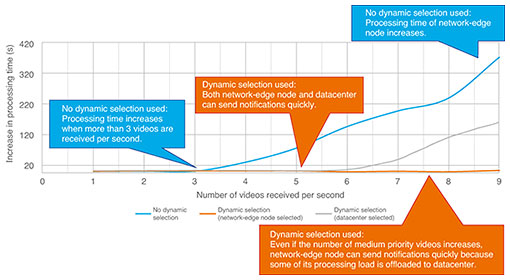

In the field trial, we examined how the number of onboard camera videos sent to the network-edge node affects the image-processing time. The results are shown in Fig. 6. The horizontal axis shows the number of videos received per second. The number of high-priority videos was varied between 1 and 3, and the number of medium-priority videos was varied between 1 and 9. The vertical axis shows the increase in processing time from a condition under which computing resources are sufficiently available. As can be seen from this figure, when no dynamic selection of processing nodes was used, the processing time at the network-edge node increased when more than three videos were received per second. In contrast, when dynamic selection of processing nodes was used, the processing time at the network-edge node did not increase until nine^*3 videos were received per second. This was because the network-edge node processed only high-priority processes and other processes were offloaded to the datacenter. Because of this offloading, the processing time at the datacenter began to increase when six videos were received per second.

Fig. 6. Results of the field trial of dynamically selecting processing nodes.
