Feature Articles: Activities toward Zero Environmental Impact and Environmental Adaptation to Build a Resilient Society

Vol. 21, No. 2, pp. 28–32, Feb. 2023. https://doi.org/10.53829/ntr202302fa3

CO2 Conversion and Emission-control Technologies toward Carbon Neutrality

Kazuma Sakoda, Manami Ito, Sousuke Imamura,
and Kazuhiro Takaya

Abstract

This review outlines two technologies contributing to carbon neutrality: (1) efficiently converting atmospheric and oceanic carbon dioxide (CO2) into organic matter by improving the carbon-fixation capacity of plants and algae, and (2) reducing CO2 emissions from soil by controlling the organic-matter decomposition induced by microorganisms.

Keywords: carbon neutrality, genome-editing technology, biogeochemical cycle

PDF PDF

1. Three strategies to reduce atmospheric CO2 level

The absorption and emission of carbon dioxide (CO2) occur through biological activities, and their balance significantly impacts the atmospheric CO2 level on Earth (Fig. 1). Compared with the total amount of CO2 emissions to the atmosphere, the amount of CO2 absorption by land plants for photosynthesis*1 and by the ocean is 57.7 and 34.6%, respectively [1], whereas the amount of CO2 emissions from soil accounts for 61.3%. NTT Space Environment and Energy Laboratories is developing three technologies to (1) reduce atmospheric CO2 with a focus on plants, (2) reduce oceanic CO2 with a focus on the food chain between algae and fish/shellfish, and (3) control CO2 emissions from soil with a focus on organic-matter decomposition induced by microorganisms.

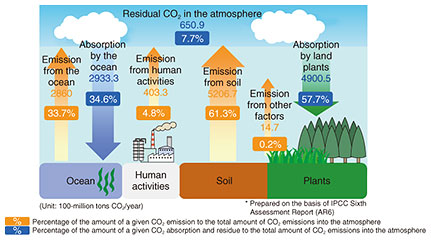

Fig. 1. The overall picture of global CO2 flux.

*1 Photosynthesis: A biochemical reaction in plants and algae that synthesizes organic compounds from CO2 using light energy.

2. Conversion technology for atmospheric and oceanic CO2

Plants and algae absorb CO2 from the surrounding environment into their bodies and synthesize organic matter from CO2 by using light energy (i.e., carbon fixation) for their growth. The enhancement of the CO2 fixation capacity in these organisms has the potential to accelerate their growth and CO2 absorption, ultimately contributing to a reduced level of atmospheric and oceanic CO2. This section introduces research on reducing atmospheric and oceanic CO2 levels by enhancing the carbon-fixation capacity in plants and algae.

2.1 Conversion technology for atmospheric CO2 focusing on plant photosynthesis

Plants in nature are exposed to not only favorable conditions but unfavorable ones such as high temperatures, drought, and water lodging. To enhance the carbon-fixation capacity of plants, it would be effective to increase the CO2 assimilation amount per unit time, lengthen the period of carbon fixation, and stabilize carbon fixation under unfavorable conditions. One promising pathway toward these goals is to reveal the genes involved in each biological process then modify the gene functions by genetic engineering. Here, we consider a case aimed at increasing the CO2 assimilation rate as an example. The whole process of CO2 assimilation by plants can be mainly divided into two processes: the CO2 diffusion process from the atmosphere to the chloroplast stroma and the CO2 fixation process consisting of various biochemical reactions at the chloroplasts. Previous studies have revealed the genes functioning in the regulation of both processes. Modification of those genes by genetic engineering was reported to increase the CO2 assimilation rate. On the other hand, most studies have been conducted under fully controlled conditions in a laboratory environment, while only a few have demonstrated reproducibility in the field. The genes that have been validated are only a small part of a vast number of genes in plants, indicating that most genes are untapped for enhancing carbon-fixation capacity.

To enhance the carbon-fixation capacity of plants, we are planning to (1) select target genes, (2) improve genetic engineering tools, and (3) develop genetically modified plants with target genes and assess their carbon-fixation capacity. First, we have selected target genes with the potential to enhance carbon-fixation capacity considering previous studies and our own experiments. We focus on genome-editing technology*2 as a genetic engineering tool, for modifying the target genes in plants without genetic recombination. We aim to improve the accuracy and efficiency of applying this technology to plants, while establishing a novel technique for genome editing. We are also developing a plant-cultivation system that can evaluate both environmental conditions and plant phenotypes such as growth and CO2 assimilation rate in the same time sequences, making it possible to quantify the impact of genome editing on the carbon-fixation capacity in plants. In the future, we will expand the experimental conditions to field environments and apply the obtained knowledge to woody and crop plants. This could lead to the development of plants with a great ability for carbon fixation and food production.

2.2 Conversion technology for oceanic CO2 focusing on food chains

To enhance the carbon-fixation capacity in algae, we are planning to select target genes, develop genome-edited algae, and evaluate their carbon-fixation capacity. Algae have a short growth cycle, which makes them unable to keep organic matter produced by photosynthesis in their body for long periods. It would be, thus, important for the carbon fixed by algae to accumulate in other living organisms with a long growth cycle for reducing oceanic CO2 levels. To achieve this, we are focusing on the food chain between algae and fish/shellfish in the ocean [2]. The carbon fixed by algae is delivered and deposited into the bodies of fish and shellfish through the food chain. We are planning to apply genome-editing technology to algae to increase the carbon-fixation capacity and growth rate, and to fish and shellfish to increase the growth rate and deposited carbon amount in shells and cartilage (Fig. 2) in collaboration with Regional Fish Institute, Ltd. This has the potential to increase and prolong carbon fixation using the synergistic effect between algae and fish/shellfish. We have been examining the optimal combination of algae and fish/shellfish and favorable feeding conditions by using a land-based aquaculture system. This system allows us to conduct experiments using genome-edited organisms without the risk of them leaking into the marine ecosystem. In the future, we will apply genome-editing technology to a single optimal combination of algae and fish/shellfish then test whether it is effective for reducing oceanic CO2 levels.

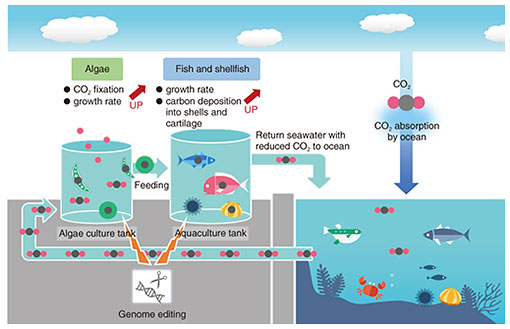

Fig. 2. Demonstrative model of oceanic CO2 reduction by applying genome-editing technology to algae and fish/shellfish.

*2 Genome-editing technology: Technology to modify targeted base sequences on the genome of an organism.

3. Control technology of CO2 emissions from soil

Various types of organic matter, such as animal waste, dead leaves, and plant roots, accumulate in soil. This organic matter is decomposed into inorganic matter by living organisms, and the inorganic matter is taken up by plants for synthesis into organic matter. Through this biogeochemical cycle, CO2 is generated mainly during organic-matter decomposition induced by microorganisms in soil (Fig. 3). Therefore, controlling organic-matter decomposition can lead to technology for reducing CO2 emissions from soil. This section introduces research on reducing CO2 emissions from soil by controlling organic-matter decomposition.

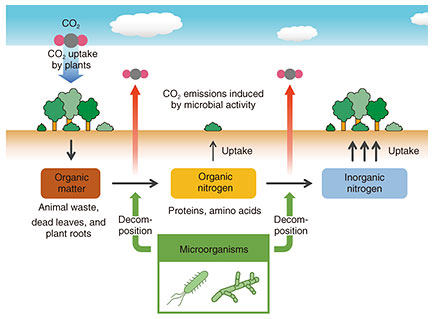

Fig. 3. CO2 emissions from soil through organic-matter decomposition.

To reduce CO2 emissions from soil by controlling organic-matter decomposition, the following question needs to be answered; “how much organic matter is decomposed and by which factors, causing CO2 to be emitted from soil?” Soil is characterized by three aspects, biological characteristics (the type and number of organisms), chemical characteristics (the type and amount of chemicals), and physical characteristics (hardness and breathability), and these affect the organic-matter decomposition while interacting with each other. When plants grow in soil, they show high photosynthetic activity under rich nutrient conditions and secrete organic matter from their roots into the soil. Soil characteristics and plant growth also affect organic-matter decomposition through their interactions. In addition, soil characteristics and plant growth are affected by environmental conditions such as temperature and water content. Overall, it would be essential to clarify the relationship between CO2 emissions and soil characteristics, plant growth, and environmental conditions to develop technology to reduce CO2 emissions from soil.

To develop such technology, we are planning to (1) obtain and analyze a large-scale dataset including soil characteristics, plant growth and photosynthetic activity, environmental conditions, and soil CO2 emissions then (2) develop a mathematical model simulating the soil CO2 emission process. We are currently developing a system that enables high-throughput collection of the dataset by using information and communication technology and Internet of Things (IoT) for plant cultivation and various measurements. The soil CO2 emission process has a complex network structure in which various factors interact with each other. Analyzing the obtained dataset by using artificial intelligence technology, we will attempt to obtain a picture of the network and elucidate the mechanism underlying soil CO2 emissions. This would enable mathematical modeling of the CO2 emission process through organic-matter decomposition and clarify the conditions required for reducing soil CO2 emissions under given environments. These achievements might contribute to the development of technologies for agricultural production and forest management with reduced environmental impact.

It is important to develop technology that both reduces soil CO2 emissions and maintains plant growth suitable for agricultural and forest ecosystems. While CO2 is generated through the decomposition of organic matter into inorganic matter in soil, plants uptake inorganic matter such as inorganic nitrogen*3, a major nitrogen source, for their growth. A reduced amount or decomposition of organic matter in soil could reduce CO2 emissions but inhibit plant growth. One pathway to balancing soil CO2 emission and plant growth is to control the microorganism activity so that CO2 generation through organic-matter decomposition declines. However, this is very challenging because there are a huge number and variety of microorganisms in soil, and the ecology of most microorganisms remains unknown. Another pathway is to develop plants showing a high availability of organic nitrogen*4. Several plants species have been reported to uptake organic nitrogen for their growth, and there is an interspecific variation in them, but the underlying mechanisms are largely unknown. We are currently searching for the genes involved in the uptake of organic nitrogen by plants. In the future, we will develop plants that show vigorous growth even under low inorganic-nitrogen levels by applying genome editing to identified genes. This has the potential to achieve crop production with a low supply level of chemical fertilizer including inorganic nitrogen, which is important in terms of saving resources and preventing environmental pollution.

*3 Inorganic nitrogen: A general term for nitrogen compounds containing no carbon, such as ammonium nitrogen, nitrite nitrogen, and nitrate nitrogen.
*4 Organic nitrogen: A general term for nitrogen compounds containing carbon, such as proteins, peptides, and amino acids.

4. Future perspectives

In this article, we outlined the technologies we are developing for CO2 conversion and emission control. For CO2 conversion technology to be practical, it needs to be provided as a packaged technology considering the use or storage of the produced organic matter. We are developing packaged technology for CO2 conversion and utilization in algae focusing on the food chain in the ocean, and a similar attempt will be carried out for plants. Controlling the organic-matter decomposition in soil is key for CO2-emission control technology but must be compatible with the activities of living organisms in ecosystems. Under this context, we are planning to construct a simulation model to assess the impact of controlling organic-matter decomposition on the entire ecosystem. We will promote the practical use of these technologies to achieve carbon neutrality while preserving the environment, food production, and biodiversity.

References

[1] The Intergovernmental Panel on Climate Change (IPCC), “Sixth Assessment Report,”
https://www.ipcc.ch/assessment-report/ar6/
[2] Website of NTT R&D, “Research on Reducing CO2 in the Ocean through the Application of Genome Editing Technology to the Carbon Cycle of Algae, Fish, and Shellfish,”
https://www.rd.ntt/e/research/JN202203_17553.html
Kazuma Sakoda
Researcher, Sustainable System Group, Zero Environmental Impact Research Project, NTT Space Environment and Energy Laboratories.
He received a Ph.D. in agricultural science from Kyoto University in 2019. He worked as a JSPS (Japan Society for the Promotion of Science) Research Fellow at Kyoto University from 2019 to 2020 and the University of Tokyo from 2020 to 2022. He was in the Department of Plant Biology and Institute for Genomic Biology, University of Illinois in 2016 and the Division of Plant Science, Research School of Biology, the Australian National University in 2019 as a visiting scholar. He joined NTT Space Environment and Energy Laboratories in 2022 and is currently studying technology for reducing atmospheric CO2 levels by enhancing the capacity of plant photosynthesis. He is a member of the Crop Science Society of Japan and the Japanese Society of Plant Physiologists.
Manami Ito
Researcher, Sustainable System Group, Zero Environmental Impact Research Project, NTT Space Environment and Energy Laboratories.
She received a B.E. and M.E. in control engineering from the Tokyo Institute of Technology in 2015 and 2017 and is now a Ph.D. student. She joined NTT Secure Platform Laboratories in 2017 and studied IoT security and TEE (Trusted Execution Environment). In 2020, she requested a transfer to her current group to study greenhouse gas reduction through a biological approach. She is a member of the Japanese Society of Microbial Ecology.
Sousuke Imamura
Distinguished Researcher, Sustainable System Group, Zero Environmental Impact Research Project, NTT Space Environment and Energy Laboratories.
He received a Ph.D. from the Tokyo University of Agriculture and Technology in 2005 and was a JSPS Research Fellow at the University of Tokyo from 2005 to 2009. He joined Chuo University as an assistant professor in 2009. In 2012, he was appointed as an associate professor at the Tokyo Institute of Technology. In 2019, he was at the Institute for Plant Biochemistry, Heinrich-Heine-University Düsseldorf as a visiting professor. In March 2021, he joined NTT Space Environment and Energy Laboratories as a distinguished researcher. His research interests include the regeneration of the global environment using photosynthetic organisms, especially algae, with molecular biology approaches.
He received prestigious awards from the Society of Genome Microbiology, Japan, in 2010 and the Nagase Science and Technology Foundation in 2017. He is a member of the Japan Society for Bioscience, Biotechnology, and Agrochemistry, the Japanese Society of Plant Physiologists, the Society of Genome Microbiology, Japan, and the Japanese Society of Photosynthesis Research.
Kazuhiro Takaya
Senior Research Engineer, Supervisor, Sustainable System Group, Zero Environmental Impact Research Project, NTT Space Environment and Energy Laboratories.
He received a B.E. and M.E. in electrical and electronic engineering from Okayama University in 1993 and 1995 and Ph.D. in electrical engineering from Kyoto University in 2019. He has been engaged in research on CO2 conversion technologies using electrochemistry and biology.
